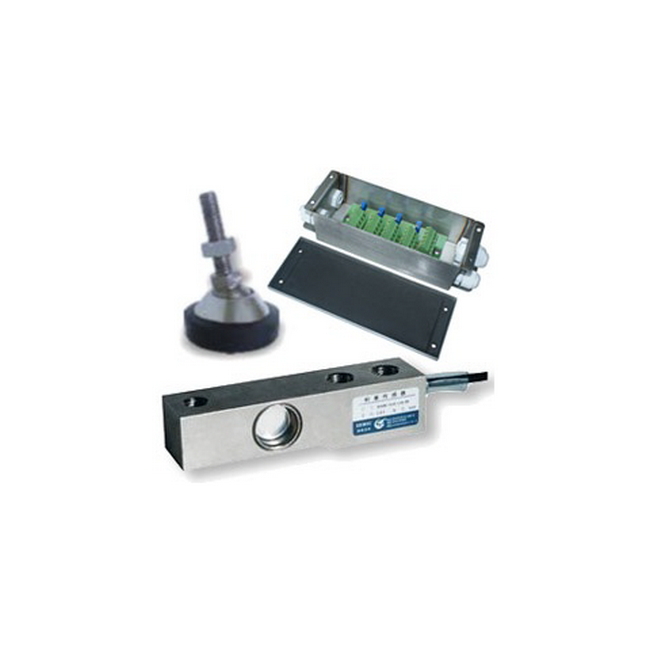

Shear Beam Load Cell Package - 2000kg - 4 Loadcells, 4 Feet and 1 Junction Box - Load Cell Package 4

Our single ended shear beams are designed for use in low profile scales and process applications. They are alloy steel and are OIML approved. They can be used in hospital bed weighing systems, floor scales, hopper scales as well as other electronic weighing devices.

Specification

• Capacity: 2000kg.
• Includes: 4 Loadcells, 4 Feet and 1 Junction box.
• Creep (%FS/30min) 0.02.
• Input resistance 350 plus/minus 3.5 Ohms.
• Ouput resistance 350 ± 3.5 Ohms.
• Insulation resistance plus/minus 5000 M Ohms (50VDC).
• Zero Balance 1.0% FS.
• Temperature effect on span %FS/10°C 0.014.
• Temperature effect on zero %FS/10°C.
• Temperature, operating (°C) -35 to +65.
• Excitation, recommended (V) 5˜12 (DC).
• Excitation, Max. (V) 18 (DC).
• Safe overload 150% FS.
• Ultimate overload 300% FS.
• Protection Class IP65.
• Cable length (m) 4.
• Cable spec 4 wire 5mm.
